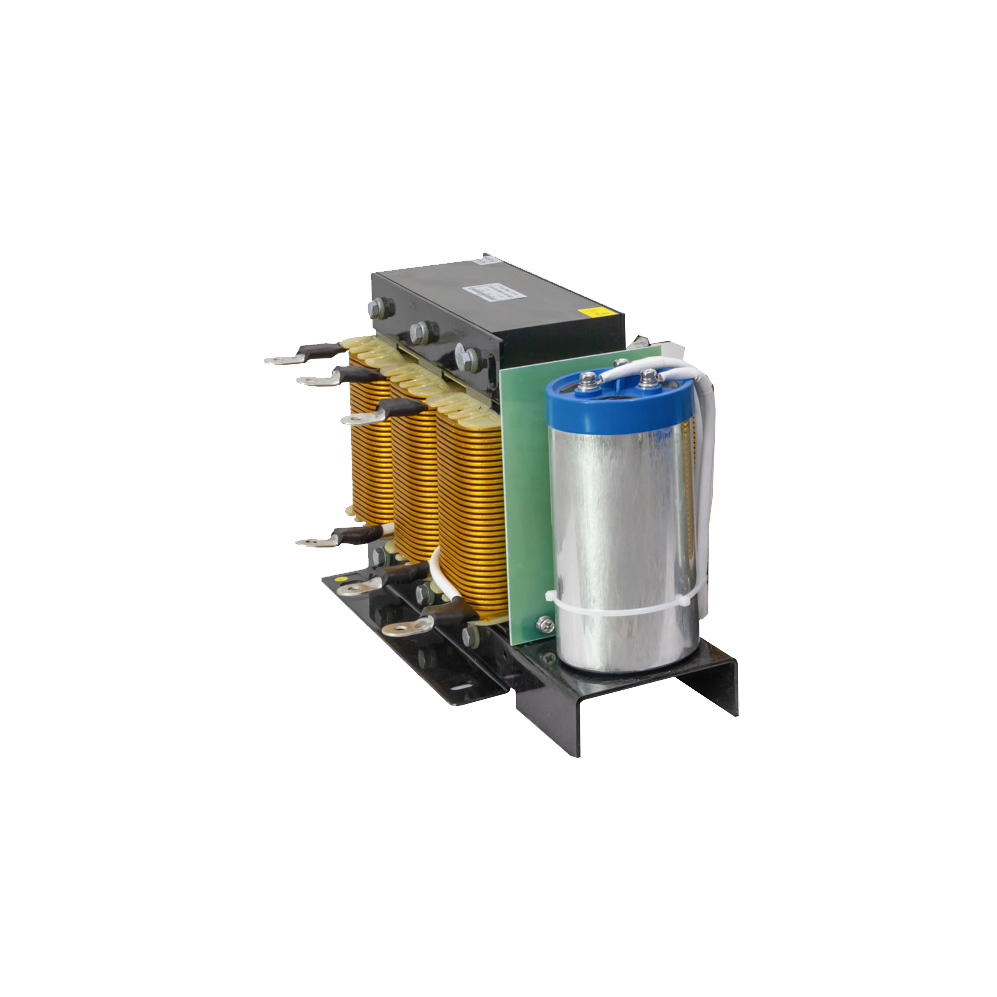

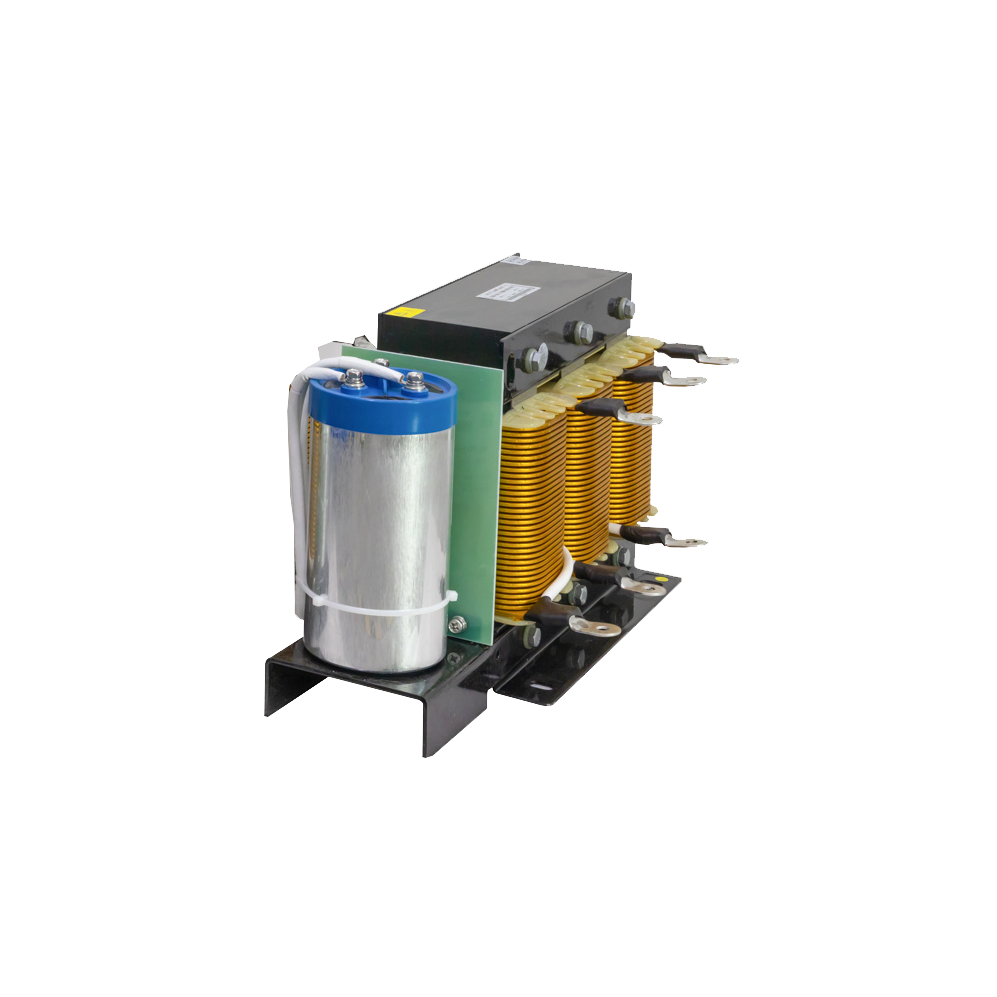

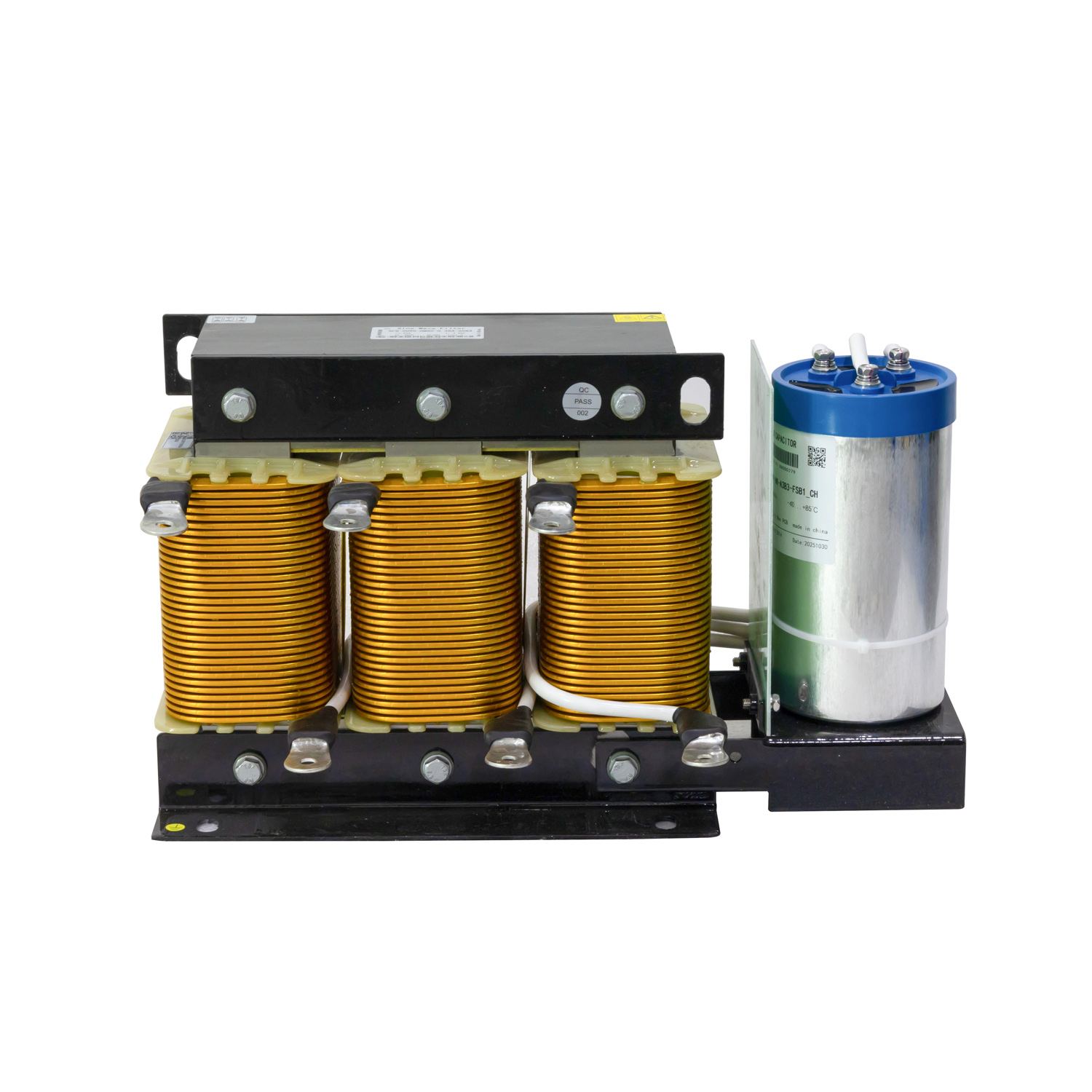

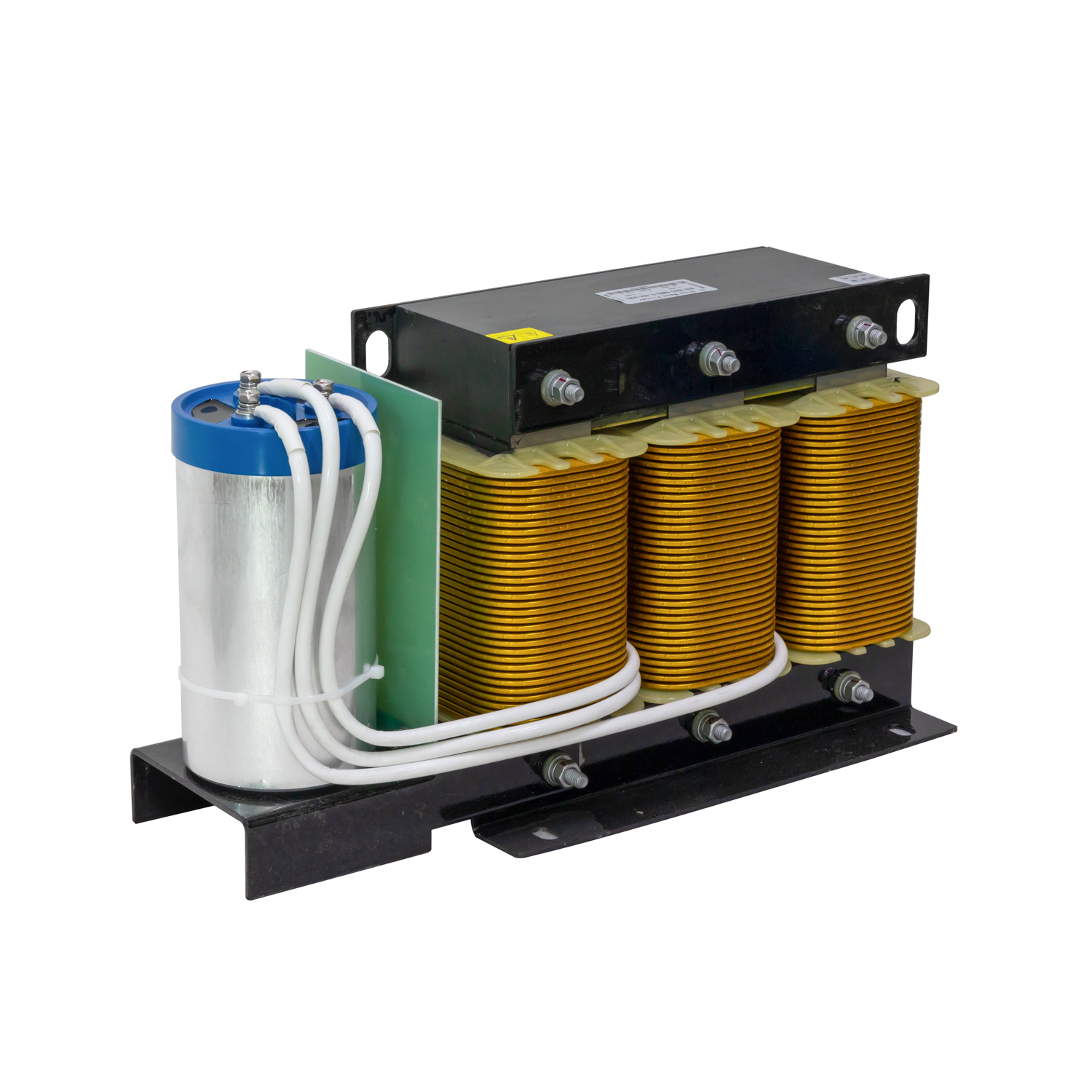

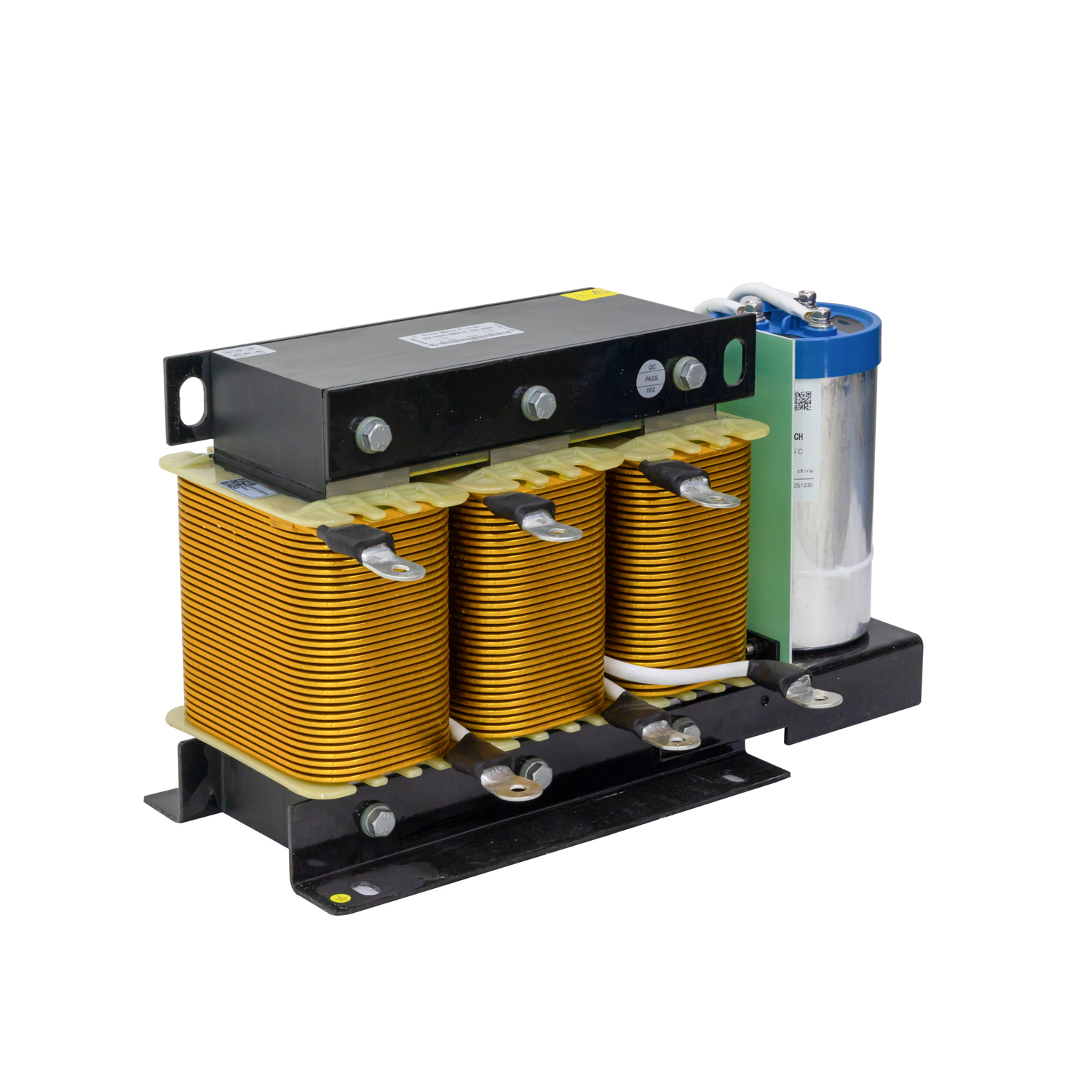

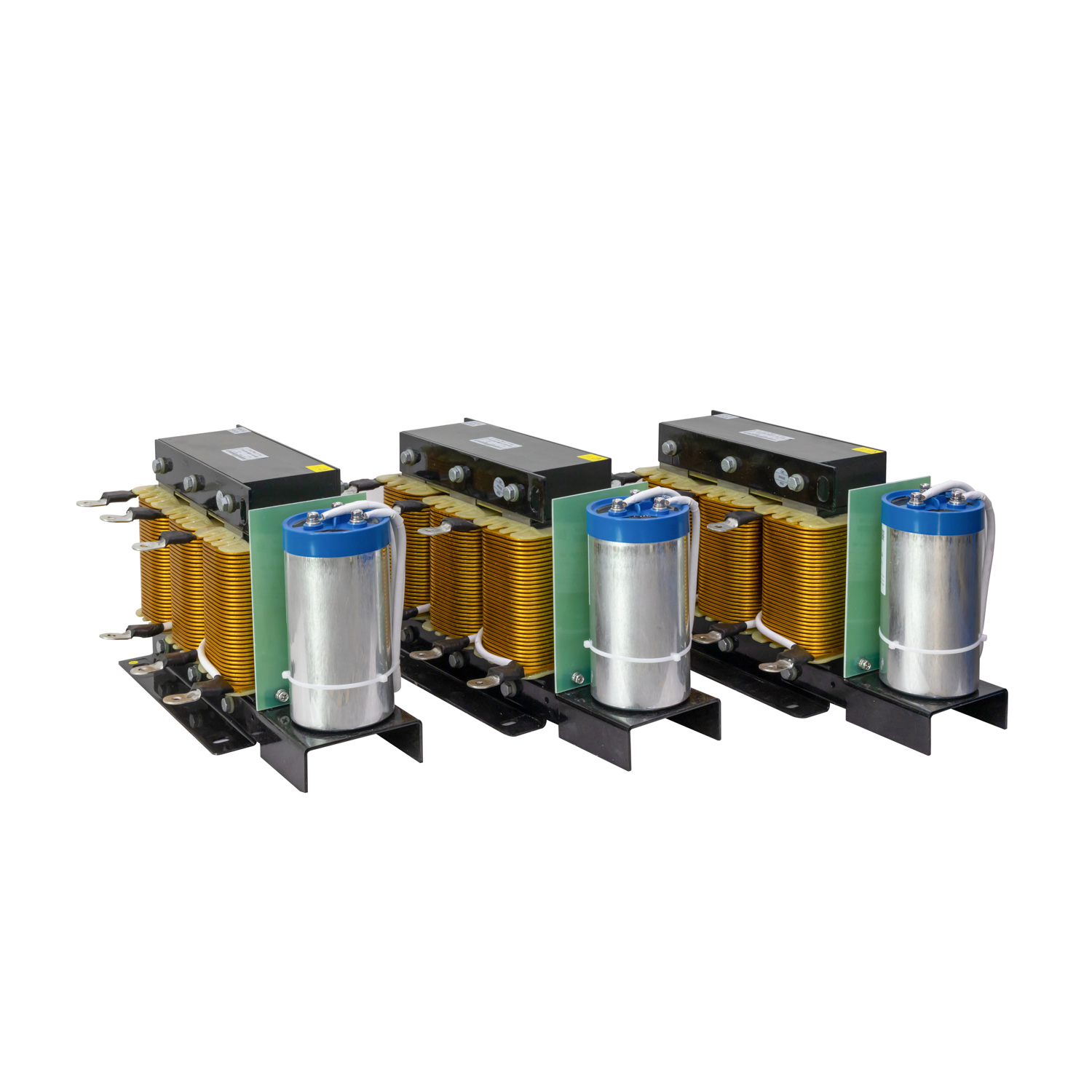

Sine Wave Filter(SFR)
Driven by the PWM inverter, the sine filter still provides sine wave output voltage when the switching frequency range is within the range of 2-8kHz. In the applications of inverter drives, such a filter can eliminate the problem of motor insulation failure and decrease electromagnetic interference by eliminating the high dV/dT related to inverter output waveform, so as to extend the life and improve the performance of the motor, and extend the output length of the inverter to up to 3KM. For the protection of wires and cables, the sine filter can avoid over-voltage of the drive motor with a long lead. In the application of other energy resources, wind generator, for example, the invertor restores the power to the utility power system through a step-up transformer. And such filters allow the use of a standard transformer. If the maximum value of the
harmonic voltage distortion input to the transformer at full load and 60Hz is 5%, the harmonic voltage distortion input to the motor at full load is generally 5%
Detail

   Product Introduction

Driven by the PWM inverter, the sine filter still provides sine wave output voltage when the switching frequency range is within the range of 2-8kHz. In the applications of inverter drives, such a filter can eliminate the problem of motor insulation failure and decrease electromagnetic interference by eliminating the high dV/dT related to inverter output waveform, so as to extend the life and improve the performance of the motor, and extend the output length of the inverter to up to 3KM. For the protection of wires and cables, the sine filter can avoid over-voltage of the drive motor with a long lead. In the application of other energy resources, wind generator, for example, the invertor restores the power to the utility power system through a step-up transformer. And such filters allow the use of a standard transformer. If the maximum value of the harmonic voltage distortion input to the transformer at full load and 60Hz is 5%, the harmonic voltage distortion input to the motor at full load is generally 5%

   Product Application

       1. Convert the PWM waves output by the inverter sine waves
       2. Reduce the eddy current losses of the motor and the motor noise
       3. Reduce the pulse current of the output cable and motor, extending the life of the motor"
       4. A longer cable wire can be used between the inverter and motor
       5. Reduce the external radiation, by using unshielded cable in certain situations, lowering  the requirements for on-site wiring requirements
       6. Effectively prevent fatigue damage of the motor cau


■   Technical Specifications

     1.   Work Voltage: 220VAC-690VAC
     2.   Work Current: 15A-1500A
     3.  Work Frequency: 50/60Hz
     4.  Switching frequency:2~8KHz
     5.  Insulation Class: class F, H
     6.  Rated voltage drop:8~12%
     7.  Voltage harmonic distortion:THD≤5%
     8.  Load Current≤8%
     9.  Operation Environment:-10~+45 ℃,rated value wont′t lower,when higer than 55℃,  and every 1℃,the current will step down 2%
    10.  Protection class: IP00-IP22
    11.  Max Current: 1.5 × Rated current,continuous 60S
    12:  Noise: ≤ 65dB
    13.  Temperature Rise: ≤ 70K
    14 . Dielectric strength: Core Coil 3000VAC/50Hz/5mA/10s no electric arcing puncture (factory test)
    15. Insulation Resistor: 1000VDC insulation resistance value ≥ 100M?
    16. Under seal level 2000m
    17. Running ambient temperature -25 ℃ ~ +45 ℃, comparative moisture not over 90%.
    18. No hazardous gas,no inflammables and explosives
    19. With well-ventilated condition,ventilation devices shall be mounted if installatioh in panels

■   Applicable Standards

        IEC289: 1987 Reactor
        GB10229-88 Reactor (eqvIEC289: 1987)
        JB9644-1999 Reactors used for semiconductor electrical driving



■    Product Size


                   TYPE

         Power

(KW)

NO.

       Rated
      Current

         (A)

  Insulation
Class

     Dimension

   L±5

         W                   H                 W1±2               D±2                 A*B
SFR–0015-0.4SA 5.5 图A 15 H 245 245 220 96 182 11*18
SFR–0020-0.4SA 7.5 图A 20 H 245 250 220 106 182 11*18
SFR–0030-0.4SA 11 图A 30 H 245 260 220 116 182 11*18
SFR–0040-0.4SA 15 图A 40 H 290 270 230 127 214 11*18
SFR–0050-0.4SA 18.5 图A 50 H 290 270 260 127 214 11*18
SFR–0060-0.4SA 22 图A 60 H 320 270 280 139 243 12*20
SFR–0080-0.4SA 30 图A 80 H 320 270 280 139 243 12*20
SFR–0090-0.4SA 37 图A 90 H 320 280 280 149 243 12*20
SFR–0120-0.4SA 45 图B 120 H 375 330 315 164 260 15*25
SFR–0150-0.4SA 55 图B 150 H 375 345 350 174 260 15*25
SFR–0200-0.4SA 75 图B 200 H 405 375 350 194 260 15*25
SFR–0250-0.4SA 110 图B 250 H 405 450 355 214 260 15*25
SFR–0290-0.4SA 132 图B 300 H 435 450 385 205 350 15*25
SFR–0330-0.4SA 160 图B 360 H 435 450 435 205 350 15*25
SFR–0390-0.4SA 185 图B 450 H 435 460 430 215 350 15*25
SFR–0490-0.4SA 220 图C 50 H 480 580 560 460 300 15*25
SFR–0600-0.4SA 280 图C 600 H 480 600 560 480 300 15*25
SFR–0660-0.4SA 315 图C 660 H 480 620 560 500 300 15*25
SFR–0800-0.4SA 380 图C 800 H 680 510 585 315 360 15*25
SFR-1000-0.4SA 450 图C 900 H 680 490 640 295 360 15*25
SFR–1200-0.4SA 500 图C 1200 H 680 510 610 315 360 15*25
SFR–1500-0.4SA 630 图C 1500 H 680 490 660 295 360 15*25

*Remark:Dimension can be customization
